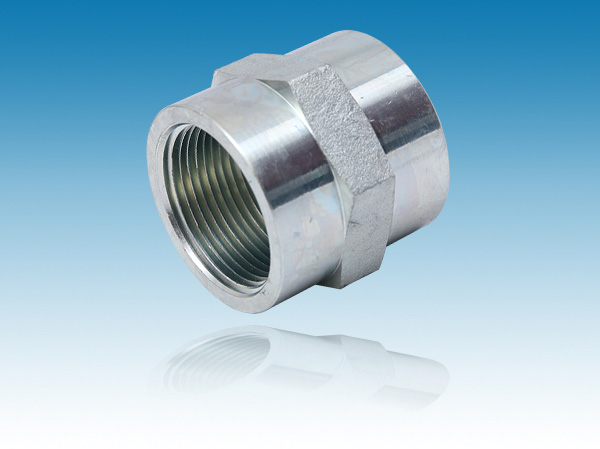

【產品名稱】 美制NPTF錐螺紋直管接頭 5000系列
【所屬分類】 美制NPTF錐螺紋接頭 【產品型號】 5000 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| Product ID | Description | A1 NPTF | A2 NPTF | L LGTH | C HEX |
| 5000-02-02 | 02FP-02FP Straight | 1/8-27 | 1/8-27 | 0.750 | 0.625 |
| 5000-04-02 | 04FP-02FP Straight | 1/4-18 | 1/8-27 | 1.130 | 0.750 |
| 5000-04-04 | 04FP-04FP Straight | 1/4-18 | 1/4-18 | 1.130 | 0.750 |
| 5000-06-02 | 06FP-02FP Straight | 3/8-18 | 1/8-27 | 1.130 | 0.875 |
| 5000-06-04 | 06FP-04FP Straight | 3/8-18 | 1/4-18 | 1.130 | 0.875 |
| 5000-06-06 | 06FP-06FP Straight | 3/8-18 | 3/8-18 | 1.130 | 0.875 |
| 5000-08-02 | 08FP-02FP Straight | 1/2-14 | 1/8-27 | 1.500 | 1.125 |
| 5000-08-04 | 08FP-04FP Straight | 1/2-14 | 1/4-18 | 1.500 | 1.125 |
| 5000-08-06 | 08FP-06FP Straight | 1/2-14 | 3/8-18 | 1.500 | 1.125 |
| 5000-08-08 | 08FP-08FP Straight | 1/2-14 | 1/2-14 | 1.500 | 1.125 |
| 5000-12-06 | 12FP-06FP Straight | 3/4-14 | 3/8-18 | 1.530 | 1.375 |
| 5000-12-08 | 12FP-08FP Straight | 3/4-14 | 1/2-14 | 1.530 | 1.375 |
| 5000-12-12 | 12FP-12FP Straight | 3/4-14 | 3/4-14 | 1.530 | 1.375 |
| 5000-16-06 | FP-FP STRT | 1-11-1/2 | 3/8-18 | 1.890 | 1.625 |
| 5000-16-08 | 16FP-08FP Straight | 1-11-1/2 | 1/2-14 | 1.890 | 1.625 |
| 5000-16-12 | 16FP-12FP Straight | 1-11-1/2 | 3/4-14 | 1.890 | 1.625 |
| 5000-16-16 | 16FP-16FP Straight | 1-11-1/2 | 1-11-1/2 | 1.890 | 1.625 |
| 5000-20-16 | 20FP-16FP Straight | 1-1/4-11-1/2 | 1-11-1/2 | 1.930 | 2.000 |
| 5000-20-20 | 20FP-20FP Straight | 1-1/4-11-1/2 | 1-1/4-11-1/2 | 1.930 | 2.000 |
| 5000-24-16 | 24FP-16FP Straight | 1-1/2-11-1/2 | 1-11-1/2 | 1.930 | 2.375 |
| 5000-24-20 | 24FP-20FP Straight | 1-1/2-11-1/2 | 1-1/4-11-1/2 | 1.930 | 2.375 |
| 5000-24-24 | 24FP-24FP Straight | 1-1/2-11-1/2 | 1-1/2-11-1/2 | 1.930 | 2.375 |
| 5000-32-24 | 32FP-24FP Straight | 2-11-1/2 | 1-1/2-11-1/2 | 1.960 | 2.875 |
| 5000-32-32 | 32FP-32FP Straight | 2-11-1/2 | 2-11-1/2 | 1.960 | 2.875 |
